• Worldwide patent.
• Chrome-vanadium ratchet gear and fully heat treated handle.
• Guaranteed to meet ISO 6789, U.S.Fed.GGG-W686D and ANSI Spec.
• Factory calibrated for accuracy to within ± 3%
(of reading form B107.14M. 20~100% maximum range).

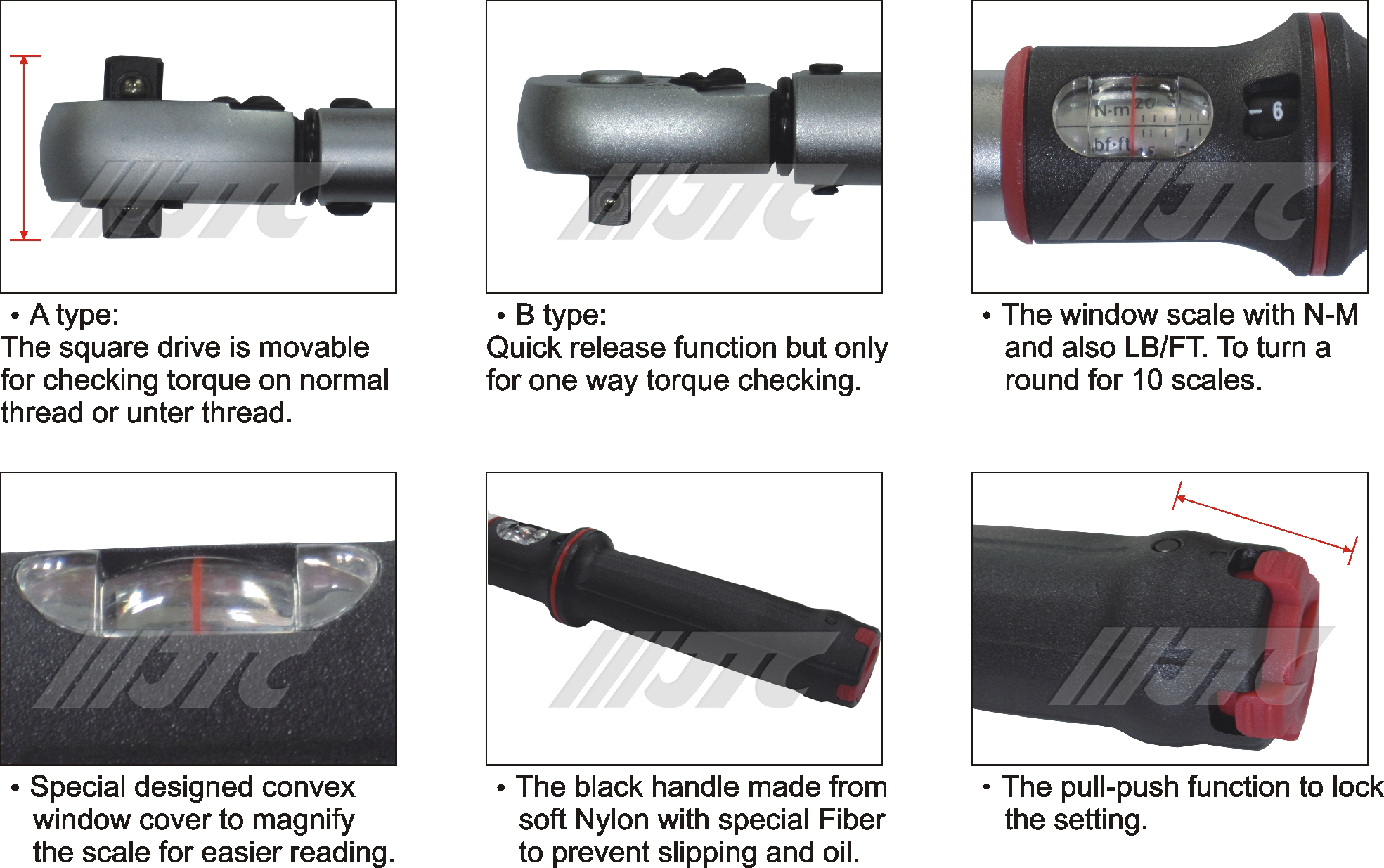

• Window is equipped with convex for scale viewing.
• Operated by unique pull-push system.
• Torque wrenches are precision tools and are not designed for
use in loosening bolts and nuts.
• Each set contains calibration certificate.
| Item | Dr. | Range of the Torque | Length | Gear Teeth | Type |
| 4932 | 1/4" | 1~25Nm / 1.5~18 lb.ft | 290mm | 45T | B |
| 4933 | 3/8" | 5~50Nm / 3.75~37.5 lb.ft | 360mm | 45T | A |
| 4934 | 3/8" | 10~100Nm / 7.5~75 lb.ft | 405mm | 45T | A |
| 4935 | 1/2" | 10~100Nm / 7.5~75 lb.ft | 405mm | 45T | A |
| 4936 | 1/2" | 20~200Nm / 15~150 lb.ft | 500mm | 45T | A |
| 4937 | 1/2" | 60~300Nm / 45~200 lb.ft | 595mm | 45T | A |
| 4938 | 3/4" | 100~550Nm / 75~405 lb.ft | 970mm | 24T | A |
| 4939 | 3/4" | 150~750Nm / 120~550 lb.ft | 1150mm | 24T | A |
| 4940 | 1" | 200~1000Nm / 150~750 lb.ft | 1250mm | 24T | B |
