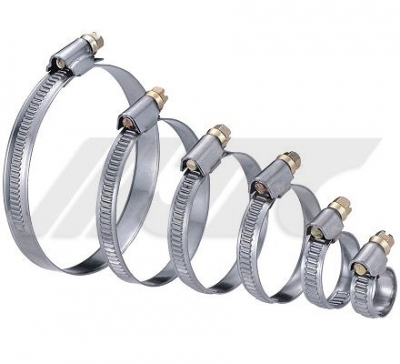

• Material: Band and hosing made by ANS#410 stainless steel.
Worm screw made by S45C.
• Special patent structure of this element takes shape with mechanical type.
• The element with high torsion (60 kg / c㎡ of 9W, 80kg / c㎡of 12W) and high stability.
• Special process of the band's brims, no burr, no damage to the hose's surface.
|
Item
|
Spec
|
Band width(mm)
|
Band thickness(mm)
|
Packing
|
Packing
|
|
ZN12
|
8-12
|
9
|
0.6
|
100pcs/box
|
20box/18.6/20/0.9'
|
|
ZN16
|
10-16
|
9
|
0.6
|
100pcs/box
|
20box/19.5/20.9/0.9'
|
|
ZN22
|
12-22
|
9
|
0.6
|
100pcs/box
|
20box/20.8/22.4/1.2'
|
|
ZN25
|
16-25
|
9
|
0.6
|
100pcs/box
|
20box/21.8/23.7/1.2'
|
|
ZN32
|
20-32
|
9
|
0.6
|
100pcs/box
|
10box/13.8/15.4/1.3'
|
|
ZN35
|
23-35
|
9
|
0.6
|
100pcs/box
|
10box/14/15.6/1.3'
|
|
ZN40
|
25-40
|
9
|
0.6
|
100pcs/box
|
10box/14.3/15.9/1.3'
|
|
ZN45
|
30-45
|
9
|
0.6
|
100pcs/box
|
10box/15.2/16.2/1.8'
|
|
ZN50
|
32-50
|
9
|
0.6
|
100pcs/box
|
10box/16.1/18.1/1.8'
|
|
ZN60
|
40-60
|
9
|
0.6
|
100pcs/box
|
10box/17.1/19.4/2.2'
|
|
ZN70
|
50-70
|
9
|
0.6
|
100pcs/box
|
10box/18.5/21.1/2.8'
|
|
ZN80
|
60-80
|
12
|
0.7
|
50pcs/box
|
10box/13.6/15.9/2.2'
|
|
ZN90
|
70-90
|
12
|
0.7
|
50pcs/box
|
10box/14.2/16.8/2.8'
|
|
ZN100
|
80-100
|
12
|
0.7
|
50pcs/box
|
10box/15.5/18.1/2.8'
|
|
ZN110
|
90-110
|
12
|
0.7
|
50pcs/box
|
10box/16.4/19.7/3.9'
|
|
ZN120
|
100-120
|
12
|
0.7
|
50pcs/box
|
10box/18.5/20.8/3.9'
|
